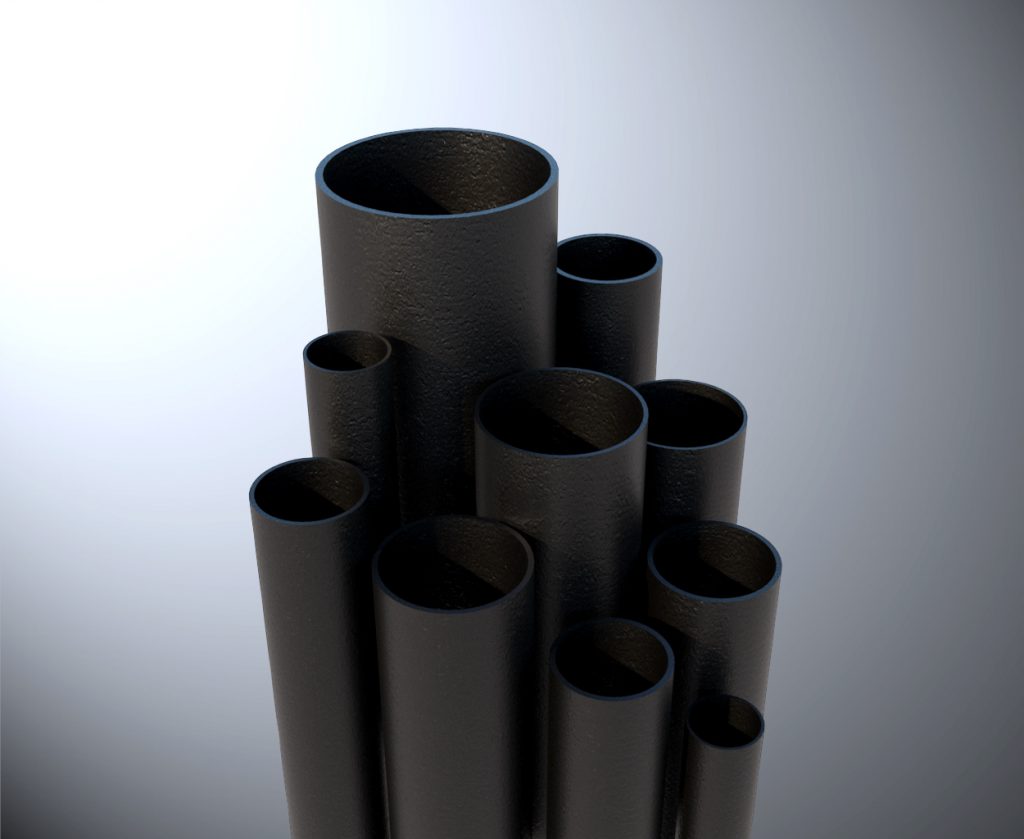

لوله های صنعتی و آبرسانی

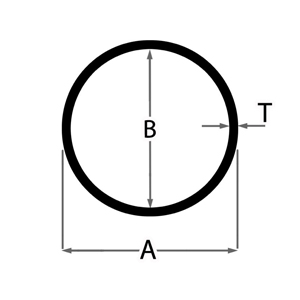

قطر داخلی ( B/mm )	قطر خارجی ( A/mm )	وزن تقریبی بسته ( Kg )	تعداد شاخه در بسته	اندازه شاخه ( M )	وزن ( Kg/M )	ضخامت ( T/mm )	نوع محصول ( Inch )
17/3	21/3	792	127	6	1	2	1/2
16/3	21/3	952	127	6	1/25	2/5	1/2
15/3	21/3	1143	127	6	1/5	3	1/2
22/7	26/7	952	127	6	1/25	2	3/4
21/7	26/7	1196	127	6	1/57	2/5	3/4
20/7	26/7	1432	127	6	1/88	3	3/4
19/7	26/7	1668	127	6	2/19	3/5	3/4
29/7	33/7	857	91	6	1/57	2	1
28/7	33/7	1070	91	6	1/96	2/5	1
27/7	33/7	1283	91	6	2/35	3	1
26/7	33/7	1496	91	6	2/74	3/5	1
25/7	33/7	1714	91	6	3/14	4	1
38/2	42/2	1119	91	6	2/05	2	1/1-4
37/2	42/2	1403	91	6	2/57	2/5	1/1-4
36/2	42/2	1681	91	6	3/08	3	1/1-4
35/2	42/2	1965	91	6	3/60	3/5	1/1-4
34/2	42/2	2244	91	6	4/11	4	1/1-4
44/3	48/3	1266	91	6	2/32	2	1-1/2
43/3	48/3	1583	91	6	2/90	2/5	1-1/2
42/3	48/3	1900	91	6	3/48	3	1-1/2
41/3	48/3	2216	91	6	4/06	3/5	1-1/2
40/3	48/3	2533	91	6	4/64	4	1-1/2
38/3	48/3	3166	91	6	5/80	5	1-1/2
56/3	60/3	1068	61	6	2/92	2	2
55/3	60/3	1335	61	6	3/65	2/5	2
54/3	60/3	1603	61	6	4/38	3	2
53/3	60/3	1870	61	6	5/11	3/5	2
52/3	60/3	2137	61	6	5/84	4	2
50/3	60/3	2671	61	6	7/30	5	2
72/3	76/3	828	37	6	3/73	2	2-1/2
71/3	76/3	1036	37	6	4/67	2/5	2-1/2
70/3	76/3	1243	37	6	5/60	3	2-1/2
69/3	76/3	1450	37	6	6/53	3/5	2-1/2
68/3	76/3	1658	37	6	7/47	4	2-1/2
66/3	76/3	2073	37	6	9/34	5	2-1/2
84/9	88/9	968	37	6	4/36	2	3
83/9	88/9	1200	37	6	5/45	2/5	3
82/9	88/9	1450	37	6	6/54	3	3
81/9	88/9	1693	37	6	7/63	3/5	3
80/9	88/9	1935	37	6	8/72	4	3
78/9	88/9	2422	37	6	10/91	5	3
97/6	101/6	560	19	6	4/92	2	3-1/2
96/6	101/6	702	19	6	6/16	2/5	3-1/2
95/6	101/6	842	19	6	7/39	3	3-1/2
96/6	101/6	982	19	6	8/62	3/5	3-1/2
93/6	101/6	1122	19	6	9/85	4	3-1/2
91/6	101/6	1404	19	6	12/32	5	3-1/2
110/3	114/3	636	19	6	5/58	2	4
109/3	114/3	795	19	6	6/98	2/5	4
108/3	114/3	955	19	6	8/38	3	4
107/3	114/3	1114	19	6	9/78	3/5	4
106/3	114/3	1273	19	6	11/17	4	4
104/3	114/3	1592	19	6	13/97	5	4
